Product Description

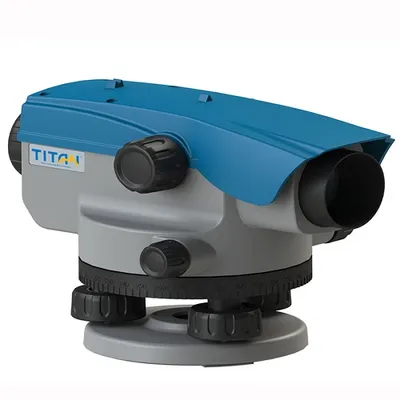

Titan TAL32 Automatic Level Auto Level
Titan TAL32 is the high precision auto-level designed for daily uses as a credible survey instrument. It is suitable for construction projects, mines, road works, etc. Equipping with an air compensator, a high precision leveling line will settle automatically after the circular bubble is adjusted properly. On top of that, the IP 66 standard body protecting the instrument from dust and water, satisfying most of the working needs.
Data Specifications
| TECHNICAL DATA | |
| Standard Deviation for 1km Double Levelling | 1.5mm |
| TELESCOPE | |
| Magnification | 32x |
| Objective Aperture | 36mm |
| Field of View | 1°20′ |
| Multiplication Factor | 100 |
| Additive Constant | 0 |
| Min. Focusing Distance | 1.0m |
| COMPENSATOR | |
| Type | Air |
| Working Range | ±15′ |
| Setting Accuracy | ±0.5″ |
| Circular Level Sensitivity | 8’/2mm |
| HORIZONTAL CIRCLE | |
| Graduation | 360° |
| Graduation Interval | 1° |
| GENERAL | |
| Environmental | IP66 environmental protection |
| Temperature -20°C to 40°C Operating | |
| Temperature -40°C to 60°C Storage | |
| Physical Properties | Size: 210mm x 135mm x 140mm |
| Weight: 1.4kg | |
